The Triple Speed Ethernet MAC core is a configurable core that complies with the IEEE Std. 802.3-2008 specification. The core supports Ethernet speeds of 2500 Mbps, 1000 Mbps, 100 Mbps, and 10 Mbps, with full duplex transfer mode.

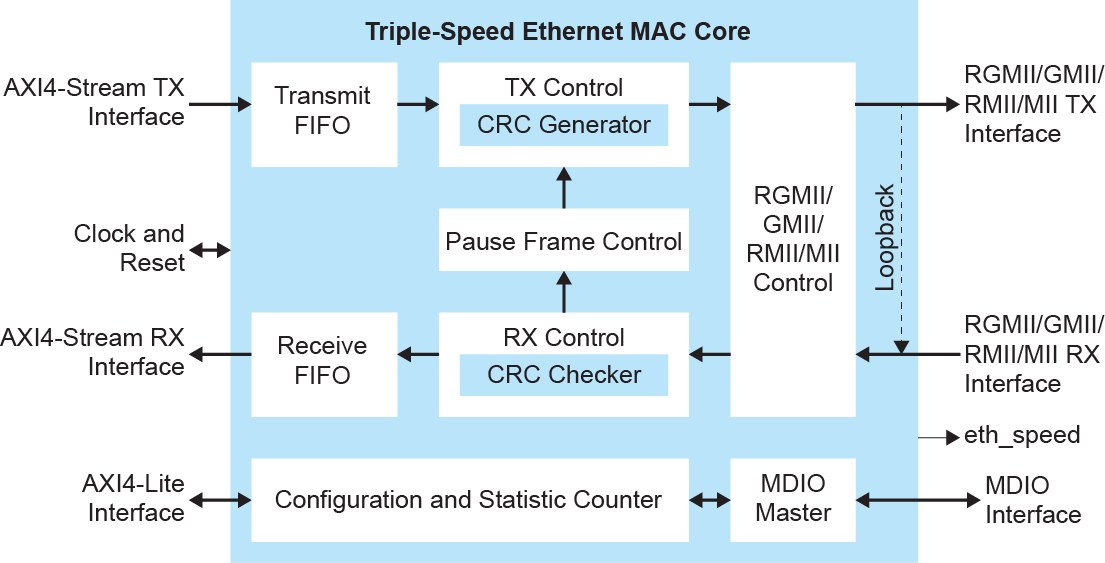

Triple Speed Ethernet MAC Block Diagram

Features

The Triple Speed Ethernet MAC core includes the following features:

• Complies to the IEEE Std. 802.3-2008 specification
• Supports VLAN frame and jumbo frame
• Supports 2500 Mbps, 1000 Mbps, 100 Mbps, and 10 Mbps with full duplex transfer mode
• 8-bit, 16-bit, and 32-bit AXI4-Stream user interface for packet transfer
• RGMII, MII, RMII, GMII, and SGMII PHY interfaces
• Optional internal FIFO buffers
• Programmable source and destination MAC addresses
• Programmable Inter Packet Gap (IPG)
• Automatic padding on short frames
• Frame check sequence or CRC generation, checking, and forwarding
• Frame length check against user-defined MTU frame length for received packets
• Frame length check against the LENGTH field for received packets
• Supports broadcast, unicast, and multicast address filtering
• Supports pause frame flow control
• Management data I/O (MDIO) for PHY device management
• AXI4-Lite or APB user interface for MAC configuration register access
• Statistic reporting
• Includes an example design targeting:
  • Trion® T120 BGA324 Development Board
  • Titanium Ti60 F225 Development Board
  • Titanium Ti375 N1156 Development Board
